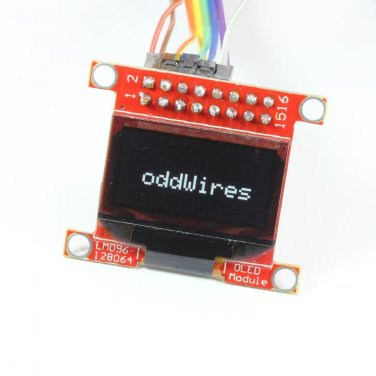

Part Number: LM096-1280641. Display Specifications 1) Display Mode: Passive Matrix 2) Display Color: Area Color (White) 3) Drive Duty: 1/64 Duty 2. Mechanical Specifications 1) Number of Pixels: 128 × 642) Module Size: 34.7 x 29.8(mm) 3) Panel Size: 26.70 × 19.26 × 1.45 (mm) 4) Active Area: 21.744 × 10.864 (mm) 5) Pixel Pitch: 0.17 × 0.17 (mm) 6) Pixel Size: 0.154 × 0.154 (mm) 3. Pin: 16pin4. Driver: SSD13065. Interface: 8-bit 68xx/80xx parallel,3-/4- wire SPI, I2C
