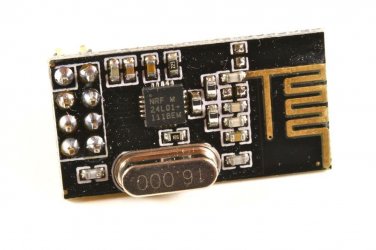

NRF24L01+ Wireless Transceiver Module for ArduinoThis is a very low cost transceiver module for the Arduino and any other microcontroller with an SPI interface. The module is based on the nRF24L01. This is a highly integrated, ultra low power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific and Medical) band. With peak RX/TX currents lower than 14mA, a sub μA power down mode, advanced power management, and a 1.9 to 3.6V supply range, the nRF24L01 provides a true ULP solution enabling months to years of battery lifetime when running on coin cells or AA/AAA batteries. The Enhanced ShockBurst™ hardware protocol accelerator additionally offloads time critical protocol functions from the application microcontroller enabling the implementation of advanced and robust wireless connectivity with low cost 3rd-party microcontrollers.The nRF24L01 integrates a complete 2.4GHz RF transceiver, RF synthesizer, and baseband logic including the Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller. The module includes crystal, matching circuitry, and antenna.SpecificationsMaximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.125 Channels, Multi-point communication and frequency hopping to meet the communication needsBuilt-in hardware CRC error detection, Multipoint communication address control.Low-power 1.9 ~ 3.6V, only 1uA on Power down modeBuilt-in 2.4Ghz antennaBuilt-in voltage regulatorStandard DIP Pitch Interface for embedded applicationsSize: 34mm X 17mm X 1mmLibraryYou can find the Arduino library here: mirf
